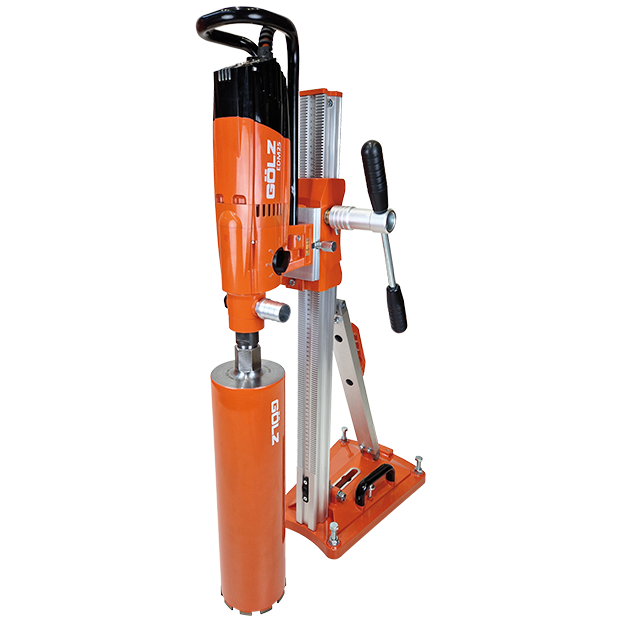

SD250

THE PROFESSIONAL CHOICE FOR ALL INSTALLATION HOLES UP TO Ø 250 MM (10")

Max. Drill-Ø

250 mm
Travel Length

600 mm
Carriage

Sliding guide carriage
Weight

10,5 kg

ltem number: 0295 125 9300

FEATURES

Vacuum fixing

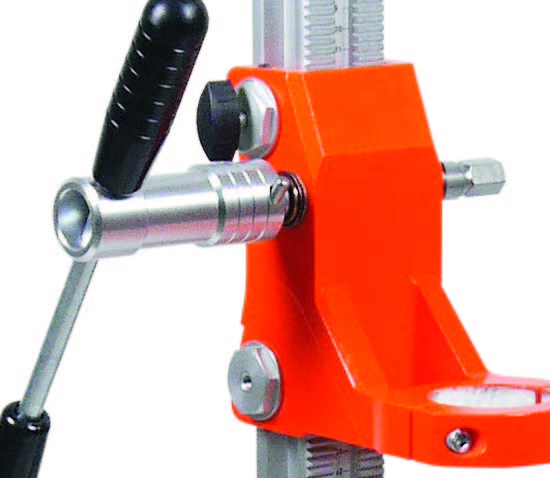

Sliding guide carriage

Laser pointer

TECH DATA TABLE

Lightweight aluminum core drill stand

• Weight drill stand 10,5 kg (23 lbs)

• Weight drill motor 9 kg (19,8 lbs)

• Maximum diameter: 250 mm (10")

• Angle drilling device up to 45°

• Smooth-running sliding guide

• Motor quick release system

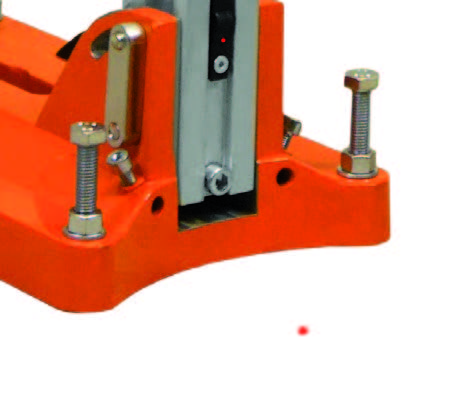

• Laserpointer - Adjust the Drill Stand to the core hole center

• Left and right handed operation

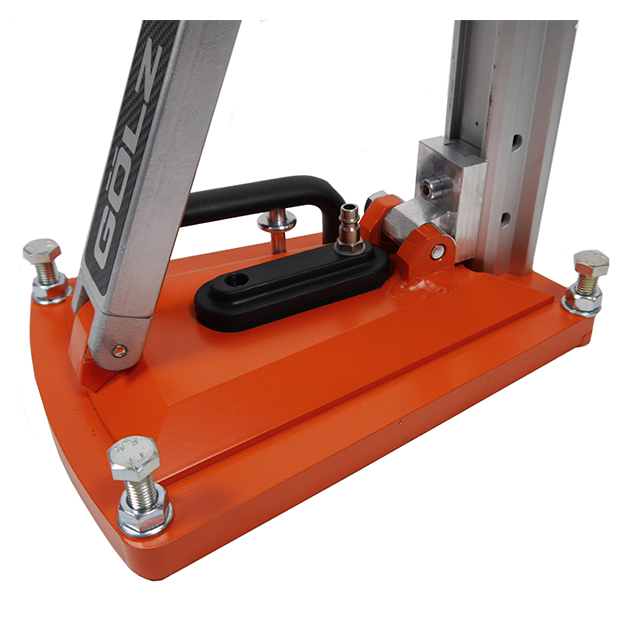

• Anchor-/vacuum base

• Travel length: 600 mm (24")

• Tool- and fastening kit included

Specifications	SD250
Max. Diameter	Ø 250 mm
Column	Aluminum
Travel length	600 mm
Angle drilling device	up to 45°
Bases	anchor-/vacuum base
Carriage	Sliding guide carriage
Dimensions (LxWxH)	440 x 310 x 930 mm
Weight	10,5 kg
Motor connection	Motormount -STS
Order number	0295 125 9300

Matching machines

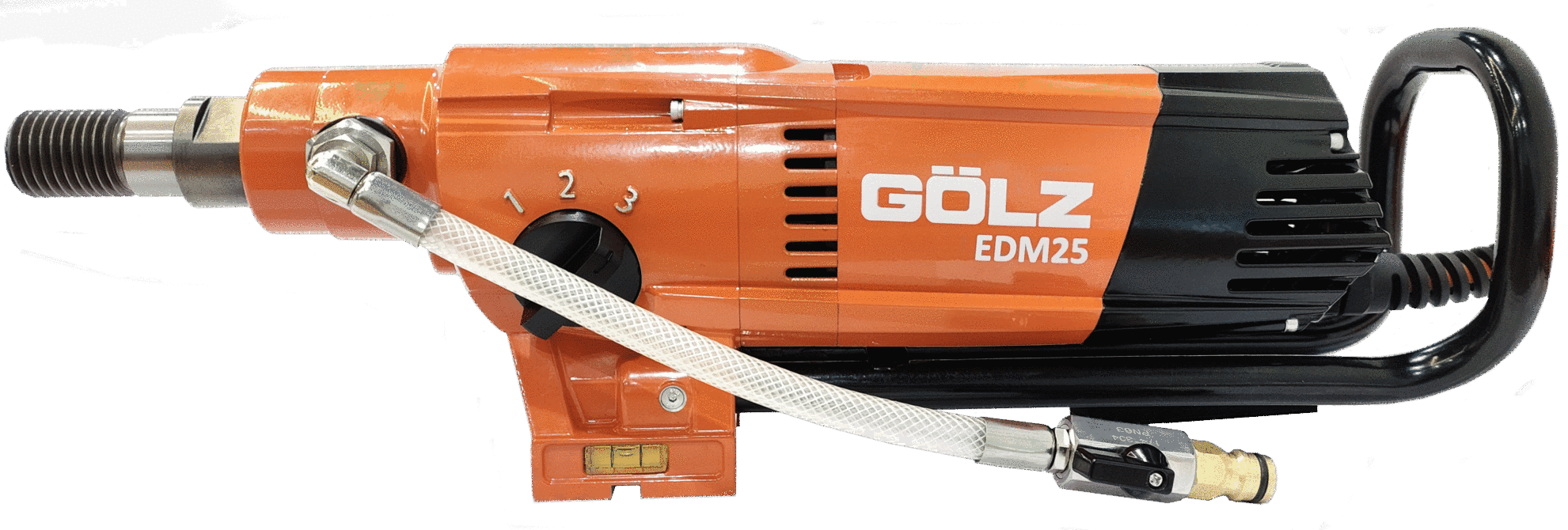

EDM25
